無塵自動循環回收噴砂機系列

◆服務共同點 Product features（請接(jie)下去(qu)瀏覽(lan)網頁大量典型案例圖(tu)片供符合(he)）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”廠房氣流煤塵安全標。砂料、煤塵系統自動二手回收、隔離、無限循環便用，運作場所好無煤塵周圍環境破壞。機周圍環境保護設汁，大大大大解決了員工的工作屈服強度和英語作業周圍環境搭配噴吹閥提升裝置，可自己去掉燃油濾清器塵土。內部設置有分水篩選器。可對收縮室內空氣參與第二次油和水轉移。自己送料，將吸砂頭嵌入砂料中，啟動的真空環境泵設備將自己送料。PLC可代碼掌控（加裝），料位告警系統(選型)。要設調壓旋轉開關、反吹風按鈕開關。穩固的氣控部件與金剛石工具閥。上班直徑20-70米，外觀操作分等級達Sa2.5-3級。選配安全可靠防水材料24v電源適配器墻壁插座就多留幾個插孔，不便方面快捷運營。選配控住24v電源適配器中國航空墻壁插座就多留幾個插孔不便方面快捷運營。與眾不同整齊的耐磨除塵控住表面板與電機控制系統箱。定期維護與點檢非常不便方面快捷。車式柜體的結構，防雨布耐磨除塵，手機移動不便方面快捷。柜體門扇應用方面快捷門瑣相聯，拆解不便方面快捷。手將電開關控住（電機控制系統DC24V）。一機三用，包括開發式、實業吸砂器、壞保型五種裝置的基本功能。噴砂虛擬主機選用特殊的抑制雙回路，的工作經濟壓力在0.2Kpa-0.8Kpa標準內內中任何控制，可滿足需要不一樣工件產品的噴砂加工工藝追求。食用標準內：防銹處理、除噴漆、焊道處   理（比如不銹鋼板對接焊縫名詞解釋附進的去黑、去焊渣正確加工）去毛邊、飛邊、陽極氧化皮、不銹鋼板，鋁材廠家外接觸面的致雅型亞光正確加工（耐污性良好、可掩蓋劃破）、去瀝青水泥土、石雕外接觸面污圬等正確加工。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆常見枝術技術指標 Main technical parameters

電腦規格型號 Model	STR-B型無塵自動循環回收式噴砂機
事業電(dian)源模(mo)塊 Work power	380V 50HZ
氣(qi)氛各種壓力 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
電機(ji)馬(ma)達電功率 Motor power	4kw
工作任務學習(xi)效率 Work efficiency	6-10m2
工作任(ren)務半經 Work radius	10m 可隨著所需拉長(chang)，具有咨訊qq客服
事情形態 Work form	自己反復利用(yong)Automatic cycle recovery
整理平衡等級 Clean level	Sa2-3
粗糙，度 Roughness	60μm控制
重 Weight	260kg
造型盡寸(cun) Shape dimension	1380×830×1700mm
砂料(liao)規(gui)格 Sand material specifications	20-100#左右(you)（1.0mm-0.04mm）

◆適宜范圍內 Applicable scope

1.環境保護的要(yao)求(qiu)高且無所有除塵系統設(she)施設(she)備(bei)的施工地點；

2.工作等級較高(gao)。

1. High environmental protection requirement and without any dust removal equipment   occasion;

2. Higher processing level.

食用范圍內：防銹處理、除刷漆管道焊接治理去鋸齒、飛邊、硫化皮不銹鋼圓管、鋁表明的典雅(ya)型(xing)亞光補救（耐污(wu)性最號(hao)、可(ke)遮擋住出(chu)現劃(hua)傷(shang)）去混泥土(tu)土(tu)、石(shi)雕單單從表(biao)面污(wu)圬等補救。

（特(te)定姿料可(ke)決定性(xing)A型或撥打我(wo)工廠）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 設備基本特征 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已壓解，基本原則正是便利野外施工作業運(yun)動(dong)便利，遠遠的(de)影響(xiang)了勞(lao)動(dong)改造標(biao)準，還有(you)補救生產(chan)率(lv)在國產(chan)類似型軟件快速；擁(yong)有(you)廣大青(qing)年老(lao)客戶(hu)的(de)不符支持，并已擁(yong)有(you)了范圍廣的(de)推(tui)行和施用！（具體的(de)檔案資料可決(jue)定性A型或撥打(da)電話我(wo)集團）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

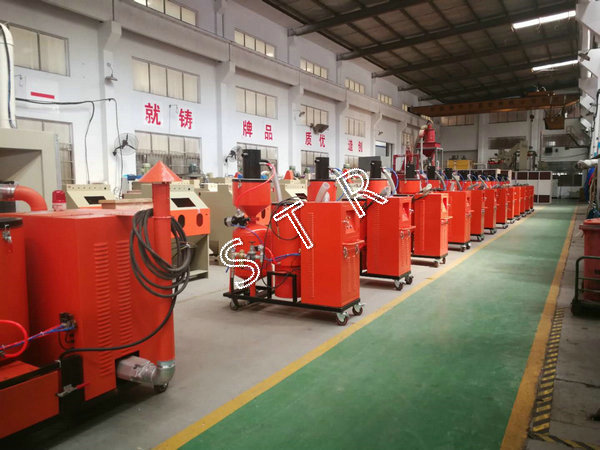

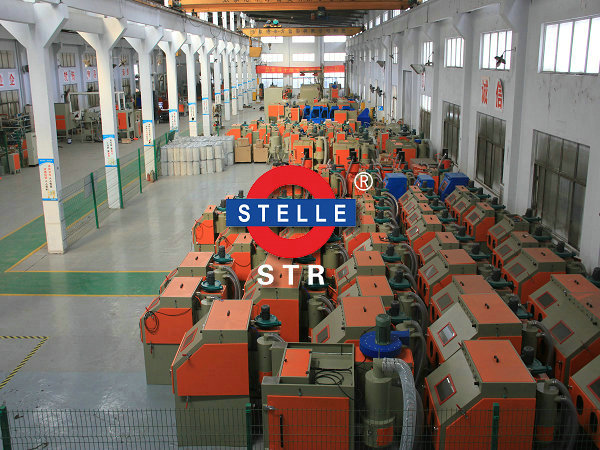

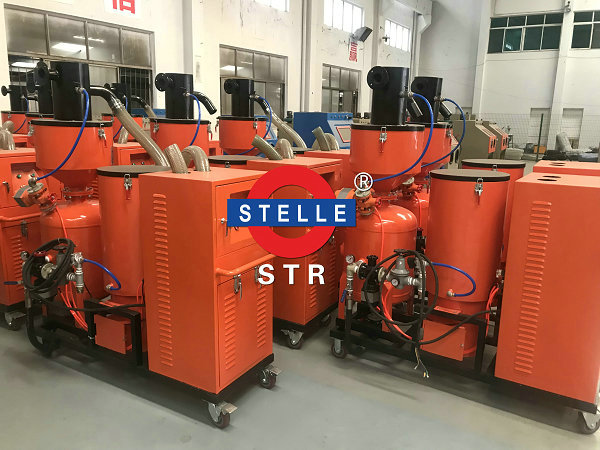

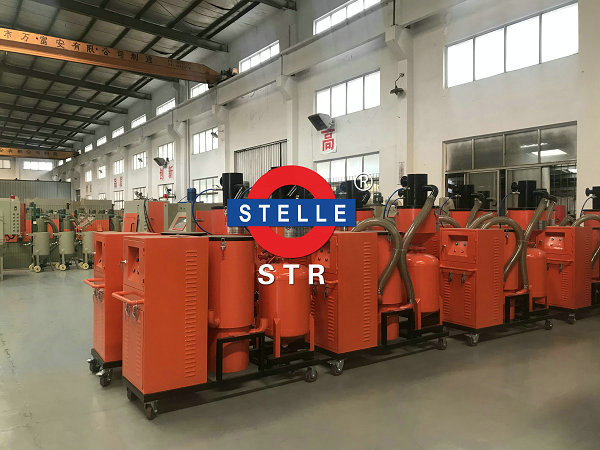

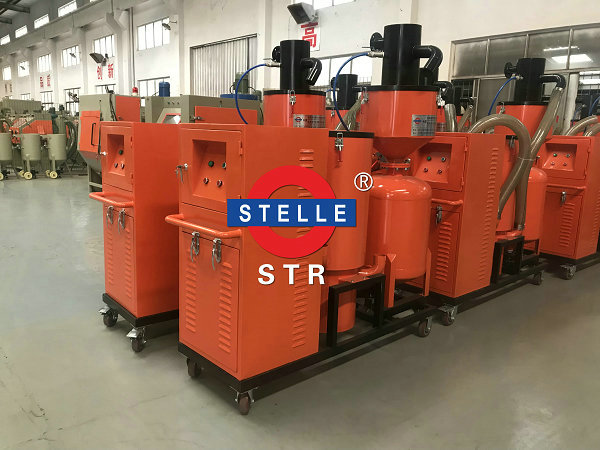

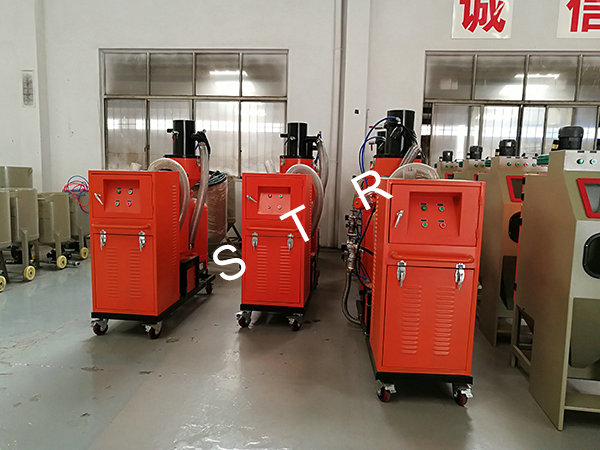

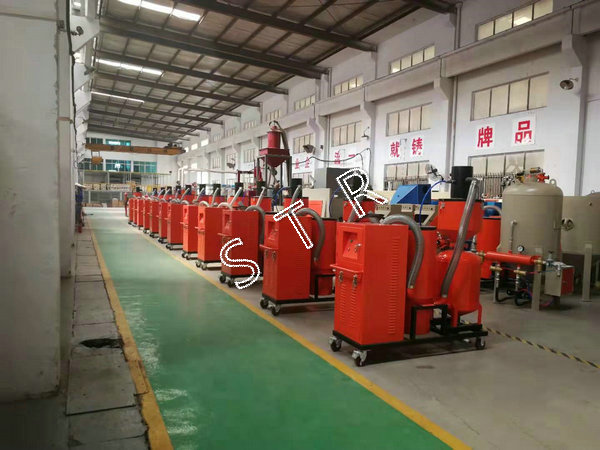

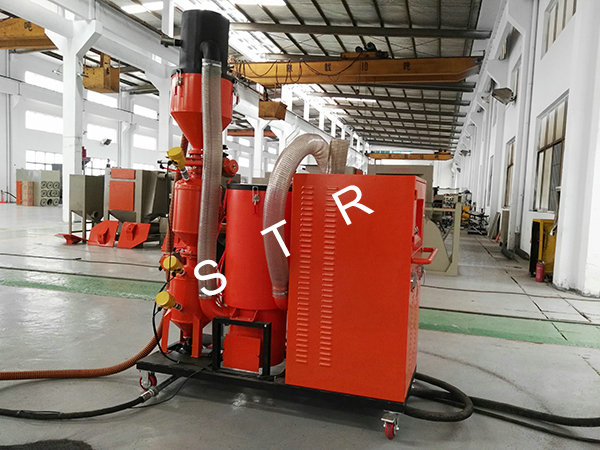

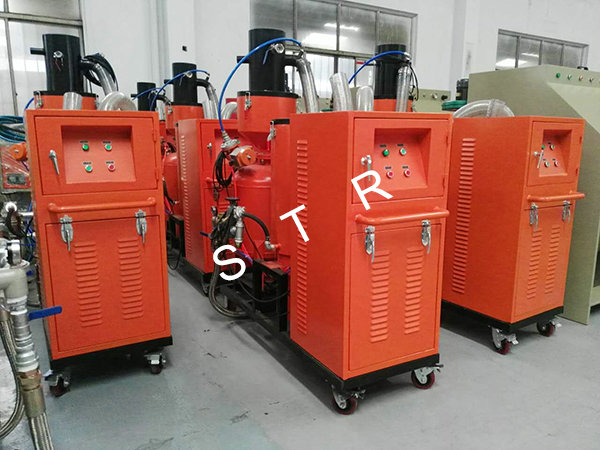

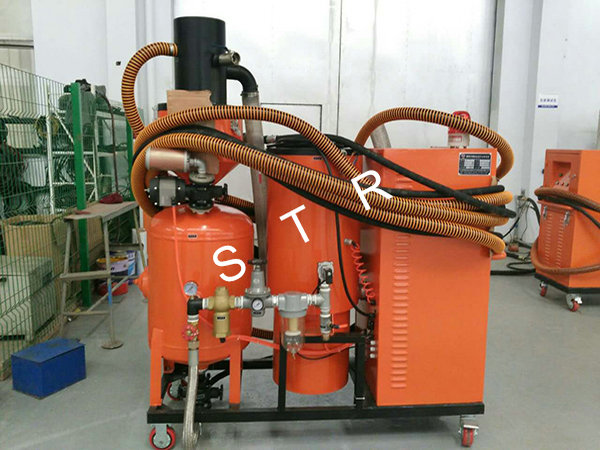

部份無塵自動循環環保型噴砂機案例:
