管道外壁自動噴砂機
◆可用超范圍 Applicable scope
管(guan)類部件,如:鍍鋅鋼(gang)管(guan)、槽鋼(gang)、拉杠、螺絲(si)桿、大(da)規(gui)模圓(yuan)形、筒體類、圓(yuan)形型工件表面;用雙槍(可按標準多槍)及漩風式(shi)除塵處理器和光電產品感應燈(deng)功效,提升(sheng)了研發工作效率及大(da)大(da)更好的減小了保修率。 (此型號規(gui)格(ge)需規(gui)定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆最主要的技術設備技術要求 Main technical parameters
|
機子參數 Model |

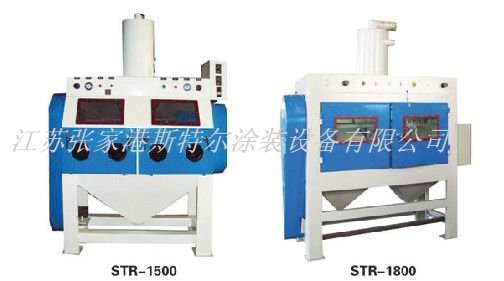

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
工作上艙外形尺寸 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
該機盡寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
解壓縮氧氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
供電 Power |
220v 50Hz |
220v 50Hz |
|
變頻電動機調壓器 Governor |
250W×2 |
250W×2 |
|
分割器三相異步電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
剝離 器風速 Air separator |
35m3/min |
35m3/min |
|
電腦凈重 Machine weight |
900kg |
900kg |
