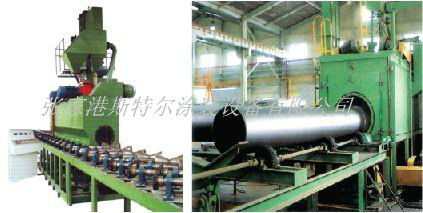

型鋼(gang)內(nei)在因素、外(wai)在環境(jing)壁(bi)拋噴丸去(qu)除機
◆物料特性 Product features
無(wu)縫塑料(liao)管(guan)側壁拋丸深度(du)清理機(ji)符合于(yu)大、中、小行無(wu)縫塑料(liao)管(guan)、設備的表面(mian)上(shang)除理和(he)強化、部(bu)件會(hui)自功翻轉視(shi)頻(pin)、會(hui)自功行進，部(bu)件的高速運行高速度(du)可(ke)據部(bu)件的需(xu)要開始適時(shi)設定(ding)，可(ke)設定(ding)成單(dan)管(guan)、雙(shuang)管(guan)、3管(guan)、4管(guan)、遺傳變異后(hou)可(ke)進行清潔(jie)大型的不銹(xiu)鋼管(guan)件、儲(chu)罐，化工環(huan)保運輸管(guan)理罐高速公路小轎車等(deng)。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆重要技術水平指標 Main technical parameters
|
除去(qu)不銹(xiu)鋼鋼管尺寸規格(ge) Clean steel pipe size |
Φ300×5000mm |
拋丸器比例 The number of shot peening machie |
2臺 |
|
輥道行駛流速 Roller speed |
1-5m/min |
拋丸器工率 Shot peening machie power |
11kw×2 |
|
彈丸孔徑 Projectile diameter |
Φ0.8-Φ1.2mm |
拋(pao)丸量 The number of shot peening |
250kg/min×2 |
|
第三(san)次彈丸(wan)放進(jin)量 The first projectile into amount |
800kg |
扇葉截面積(ji) Impellerdiameter |
Φ250mm |
|
進(出)料輥道高度 Length of material into(out) the roller |
5000mm |
水泵葉(xie)輪轉速比(bi) Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射(she)快慢(man) Aerosol propellant speed |
60-70m/s |
|
承載力載重(zhong)量 Load weight |
30kg/m |
不斷提升(sheng)設(she)備熱效率(lv) Hoist machine power |
3kw |
|
擺線降速機電功率 Cycloidal reducer power |
2.2kw |
升(sheng)降量 Ascension of |
30/h |
|
過(guo)慮布袋條數 The number of filter bag |
36條 |
剝離 量 Separation of |
30t/h |
|
過濾器布袋品種 Specification of filter bag |
Φ120×5000mm |
側(ce)向槽式電功率Longitudinal spiral power |
3kw |
|
凈化處理風速 Processing air volume |
9800m3/h |
輸送管(guan)量 Throughput |
30t/h |
|
除(chu)塵處理(li)送風機馬力 Dust electromotor power |
5.5kw |
總工作(zuo)電(dian)壓(ya) Total power |
37kw的樣子 |
|
振打三相異步電機(ji)馬力(li) Vibration motor power |
0.75kw |
系統外觀形狀(zhuang)面積 Shape dimension |
15000×4600×5000mm |
